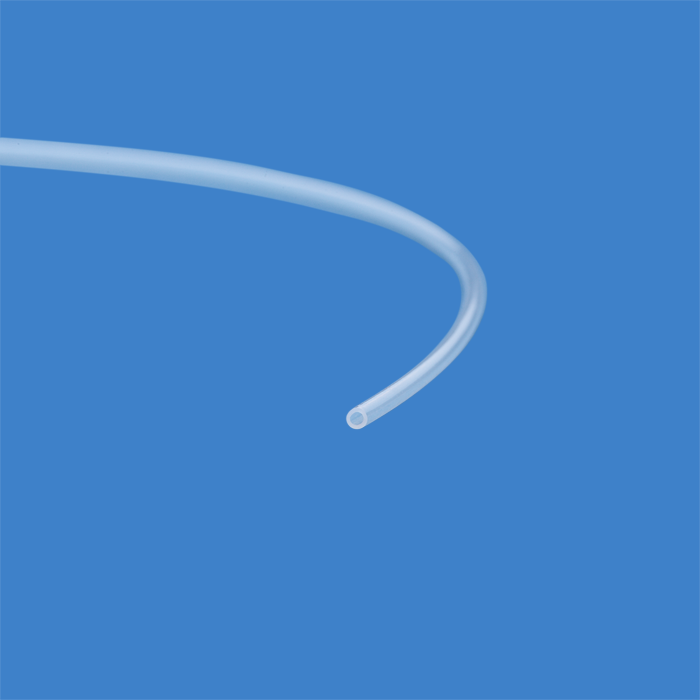

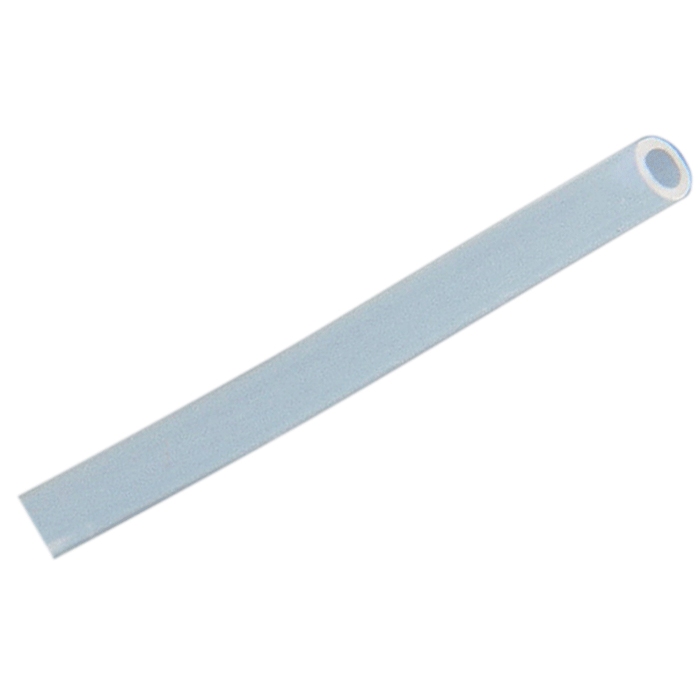

Tubing, PTFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-40-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing an extra‑large internal diameter for maximum flow rates and minimal backpressure, along with extended length for efficient system routing.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring clean, inert fluid pathways compatible with sensitive analytical workflows.
Precision Dimensions – Ultra High Flow Optimization
Inner Diameter (ID): 0.040" (1.0 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.30 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID configuration delivers maximum flow capacity with minimal resistance
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer and drainage
Pressure Rating: 365 psi (25.2 bar)
✅ Ideal for high‑volume solvent transport over longer distances
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except trace manufacturing particles)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for aggressive chemical environments and elevated temperatures
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing where gas impermeability is required
Flexible & Durable Design
Flexible for long‑distance routing and installation
Durable under repeated laboratory use
Natural translucent appearance allows visual confirmation of flow
✅ Supports efficient system setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Bulk solvent delivery systems (pre‑pump)
High‑volume solvent transfer and routing
Extended solvent waste lines
Low‑pressure laboratory fluid handling
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure, leak‑free performance
